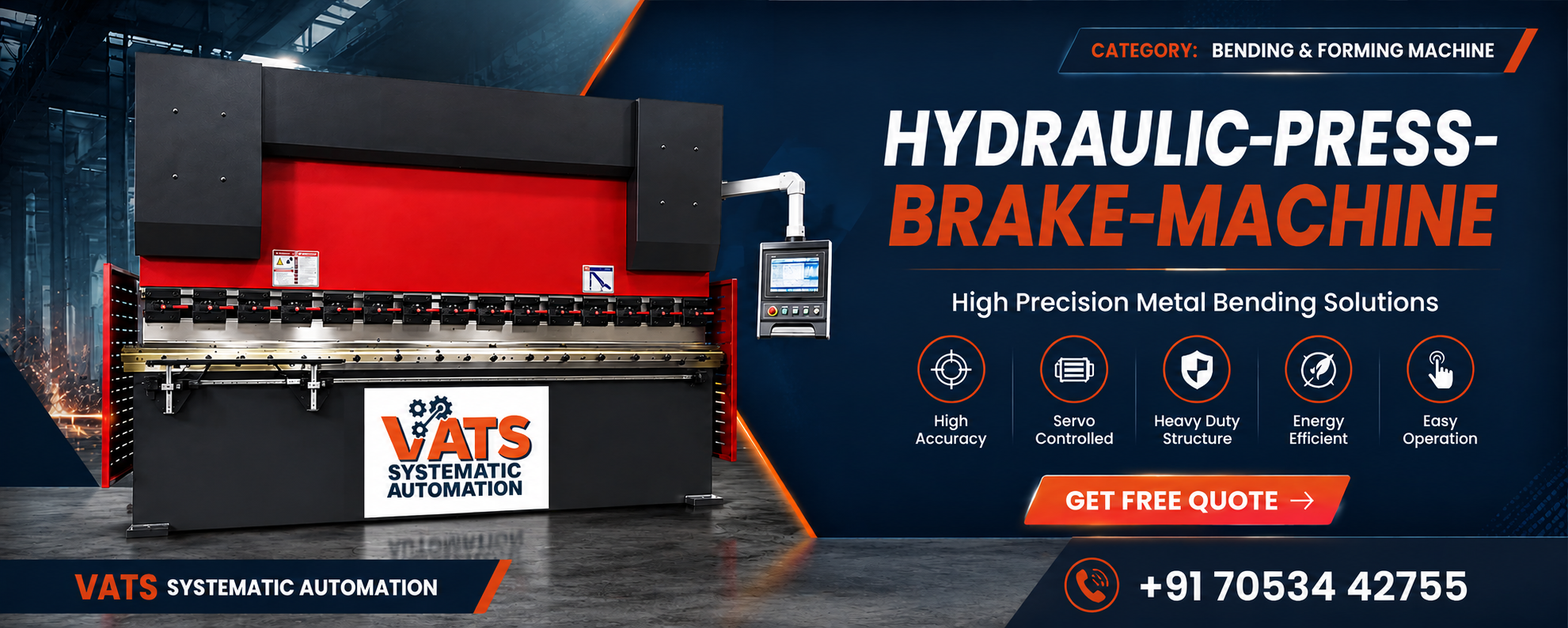

Hydraulic Press Brake Machine
The Hydraulic Press Brake Machine from VATS Systematic Automation is an industrial sheet metal bending solution designed for accurate and repeatable bending of metal sheets and plates. Hydraulic pressing technology provides controlled bending force for forming different angles and profiles according to production requirements.
The machine is suitable for fabrication workshops, engineering industries, structural steel manufacturing, electrical enclosures, automobile components, HVAC fabrication and general sheet metal processing. Depending on the selected configuration, the machine can be equipped with NC or CNC control for improved productivity and repeatable bending operations.
Features of Hydraulic Press Brake Machine
Hydraulic Bending System
Hydraulic power provides controlled pressing force for efficient bending of compatible metal sheets and plates.
Rigid Machine Structure
A robust machine frame is designed to provide stability during bending operations and support consistent forming results.
Precision Bending
Controlled ram movement and suitable tooling help achieve accurate and repeatable bending angles.
NC / CNC Control Options
Depending on the machine configuration, NC or CNC control can simplify programming and improve repeatability in production operations.
Multiple Bending Applications
Suitable tooling and machine configurations allow different bending operations for a wide range of sheet metal components.
Industrial Production
Designed for fabrication, engineering, structural steel, automobile and general sheet metal manufacturing applications.
How a Hydraulic Press Brake Works
Sheet Positioning
The metal sheet is positioned accurately on the press brake according to the required bending dimensions.
Tool Selection
Suitable punch and die tooling is selected according to material, thickness and required bending profile.
Back Gauge Positioning
The back gauge is positioned to establish the required bending reference and improve dimensional consistency.
Hydraulic Bending
Hydraulic force drives the ram to press the sheet between the punch and die and create the required bend.
Angle Verification
The finished bend can be checked and adjusted according to the required production tolerance.
Finished Component
The bent component is ready for subsequent fabrication, welding, assembly or finishing operations.
Hydraulic Press Brake Machine Specifications
| Parameter | Specification |
|---|---|
| Machine Type | Hydraulic Press Brake Machine |
| Machine Operation | Hydraulic |
| Control System | NC / CNC, According to Machine Configuration |
| Nominal Bending Force | Available in Multiple Configurations |
| Working Length | Available in Multiple Configurations |
| Maximum Bending Thickness | Depends on Material, Width and Machine Capacity |
| Maximum Bending Length | According to Selected Machine Model |
| Stroke Length | According to Machine Configuration |
| Throat Depth | According to Machine Configuration |
| Daylight Opening | According to Machine Configuration |
| Back Gauge | Motorized / CNC Back Gauge According to Configuration |
| Ram Movement | Hydraulic |
| Tooling | Punch & Die Tooling |
| Number of Controlled Axes | According to NC / CNC Configuration |
| Machine Structure | Heavy-Duty Welded Steel Structure |
| Drive System | Hydraulic Drive System |
| Power Supply | According to Machine Model |
| Application | Sheet Metal Bending & Forming |
| Machine Configuration | Customizable According to Production Requirements |
Materials Suitable for Hydraulic Press Brake
Mild Steel
Carbon Steel
Stainless Steel
Aluminium
Galvanized Steel
Other Compatible Sheet Metals
Sheet Metal Bending Applications
V-Bending
Angle Bending
Channel Bending
Box Bending
Flange Bending
Multi-Step Bending
Sheet Metal Forming
Custom Profile Bending
Applications of Hydraulic Press Brake Machine
Sheet Metal Fabrication
Structural Steel Fabrication
Electrical Enclosures
Control Panels & Cabinets
Automobile Components
HVAC Components
Industrial Machinery Parts
Construction Components
Elevator Components
Metal Furniture Components
Industrial Equipment
General Engineering Applications
Advantages of Hydraulic Press Brake Machine
Controlled Bending Force
Hydraulic operation provides controlled pressing force for a wide range of sheet metal bending applications.
Accurate Bending
Suitable machine controls, tooling and back gauge systems help achieve consistent bending dimensions and angles.
Heavy-Duty Construction
The rigid welded machine structure is designed for demanding industrial bending operations.
Flexible Tooling
Different punch and die combinations can be used for various sheet metal bending applications.
Repeatable Production
NC or CNC control options can help improve repeatability during repeated sheet metal bending operations.
Versatile Industrial Use
Suitable for fabrication, engineering, automotive, structural steel and general sheet metal industries.
Why Choose VATS Systematic Automation?
VATS Systematic Automation LLP provides CNC and industrial automation solutions for modern manufacturing, sheet metal processing and fabrication requirements. Our product portfolio includes hydraulic press brake machines, power shearing machines, CNC plasma cutting machines, fiber laser cutting machines, welding machines, drilling machines, CNC controllers, machine components and industrial consumables.
We focus on understanding customer material, thickness, bending length, production volume and application requirements before recommending a suitable machine configuration. Our team also provides technical guidance, installation assistance and after-sales support for industrial machinery.
Hydraulic Press Brake Machine Supplier
VATS Systematic Automation LLP is a manufacturer, supplier and trader of hydraulic press brake machines, sheet metal fabrication equipment, CNC cutting machines, fiber laser systems, welding equipment, power shearing machines, drilling machines, CNC controllers and industrial automation solutions.
If you are looking for a Hydraulic Press Brake Machine, our team can help you identify a suitable configuration based on sheet thickness, bending length, material type, required bending force, tooling and production requirements.
Looking for a Hydraulic Press Brake Machine?
Share your sheet metal bending requirements with VATS Systematic Automation and get guidance on a suitable hydraulic press brake solution for your production.
