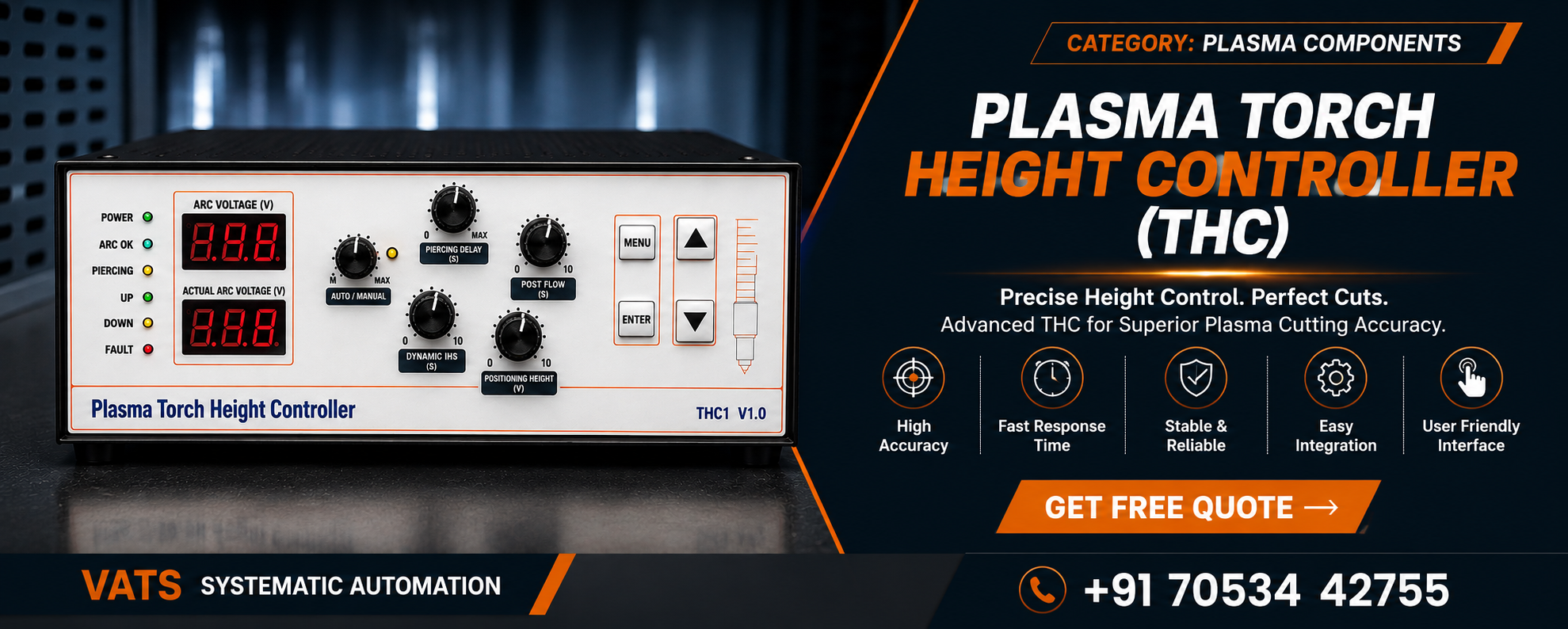

Plasma Torch Height Controller (THC)
The Plasma Torch Height Controller (THC) from VATS Systematic Automation is designed to automatically control the height of a plasma cutting torch during CNC plasma cutting operations. By monitoring the cutting condition and maintaining a suitable torch-to-workpiece distance, the THC helps support consistent plasma cutting performance.
During plasma cutting, the distance between the torch and the metal plate can affect arc stability, cut quality and consumable life. A suitable Torch Height Controller helps compensate for variations in the workpiece surface and maintains the required torch height during the cutting process.
Plasma Torch Height Controllers are commonly integrated with CNC plasma cutting machines, plasma power sources and CNC controllers for automated metal cutting applications involving mild steel, stainless steel, aluminium and other electrically conductive metals.
Features of Plasma Torch Height Controller
Automatic Torch Height Control
Automatically adjusts torch position according to the configured cutting parameters and workpiece condition.
Arc Voltage Monitoring
Compatible THC systems can use arc voltage feedback to help maintain the required torch-to-workpiece distance.
Plate Surface Compensation
The THC can compensate for changes in plate height and surface position during the cutting operation.
Automatic Z-Axis Control
The system can coordinate the Z-axis movement to maintain the programmed or required torch height.
Initial Height Sensing
Compatible THC systems can perform initial height sensing before the plasma cutting arc is established.
CNC System Integration
Designed for integration with compatible CNC plasma controllers, plasma sources and torch systems.
How a Plasma Torch Height Controller Works
Initial Torch Position
The plasma torch moves to the required starting position above the workpiece.
Height Sensing
A compatible sensing method detects the workpiece position and establishes the initial torch height.
Piercing Height
The torch is positioned at the required piercing height according to the cutting system configuration.
Arc Establishment
The plasma cutting arc is established through the compatible plasma power source and torch system.
Cut Height Control
During cutting, the THC monitors the configured feedback and adjusts the Z-axis to maintain suitable torch height.
Continuous Adjustment
The system responds to workpiece height variations during the cutting path according to its configured control parameters.
Plasma Torch Height Controller Specifications
| Parameter | Specification |
|---|---|
| Product Type | Plasma Torch Height Controller (THC) |
| Application | CNC Plasma Cutting |
| Primary Function | Automatic Plasma Torch Height Control |
| Control Axis | Z-Axis |
| Height Feedback | Arc Voltage / Compatible Height Sensing |
| Initial Height Sensing | Available According to THC Configuration |
| Arc Voltage Monitoring | Available According to Selected THC Model |
| Arc Voltage Setpoint | Adjustable According to System Configuration |
| Pierce Height | Configurable According to Cutting Parameters |
| Cutting Height | Configurable According to Material and Plasma System |
| Plasma Source Compatibility | According to Selected THC Model |
| CNC Controller Compatibility | Compatible CNC Plasma Controllers |
| Z-Axis Drive Interface | According to Controller and THC Configuration |
| Material Compatibility | Mild Steel, Stainless Steel, Aluminium and Other Plasma-Cuttable Metals |
| Input / Output | According to Selected THC Model |
| Communication Interface | According to THC Configuration |
| Display | Digital Display / Control Interface According to Selected Model |
| Power Supply | According to Selected THC Model |
| Installation | CNC Plasma Cutting Machine Integration |
Plasma Torch Height Controller Functions
Initial Height Sensing
Automatic Z-Axis Control
Arc Voltage Monitoring
Automatic Cut Height Control
Pierce Height Control
Plate Height Compensation
Arc Start Control
Anti-Collision Support
Components Used with a Plasma Torch Height Controller
Plasma Torch
The plasma torch performs the cutting operation and follows the height commands from the compatible control system.
Plasma Power Source
The THC works with a compatible plasma power source capable of providing the required cutting feedback.
CNC Plasma Controller
The CNC controller coordinates the cutting program, machine movement and THC operation.
Z-Axis Drive
The compatible Z-axis drive moves the torch vertically according to the THC control signal.
Height Sensing System
A compatible sensing arrangement detects the workpiece position before and during the cutting process.
CNC Cutting Table
The THC is integrated with the CNC plasma cutting table to maintain suitable torch height during operation.
Benefits of Plasma Torch Height Controller
Consistent Torch Height
Automatic height adjustment helps maintain a suitable torch-to-workpiece distance during cutting.
Improved Cutting Consistency
Maintaining appropriate torch height can support more consistent plasma arc and cutting performance.
Plate Warpage Compensation
Automatic Z-axis adjustment can compensate for variations in the height of the workpiece surface.
Reduced Torch Collision Risk
Suitable height control and anti-collision functions can help reduce the risk of torch contact with the workpiece.
Better Consumable Utilization
Maintaining an appropriate torch height can help avoid operating conditions that may unnecessarily increase consumable wear.
Automated CNC Operation
THC integration reduces the need for continuous manual torch-height adjustment during CNC plasma cutting.
Applications of Plasma Torch Height Controller
CNC Plasma Cutting Machines
Gantry Plasma Cutting Machines
Portable CNC Plasma Machines
Bench Type Plasma Cutting Machines
Pipe & Profile Plasma Cutting Systems
Automated Plasma Cutting Tables
Structural Steel Fabrication
Heavy Metal Fabrication
PEB Steel Fabrication
Industrial Engineering
Metal Processing
General Fabrication
Plasma Torch Height Controller Maintenance
Check Torch Components
Regularly inspect the plasma torch and consumables for wear, damage or contamination.
Inspect Height Sensor
Verify the operation and connection of the compatible initial height sensing system.
Check Z-Axis Movement
Ensure that the Z-axis moves smoothly and responds correctly to the THC control signal.
Inspect Cables & Connections
Check THC, torch, controller and signal connections for damage or loose connections.
Verify Cutting Parameters
Ensure that pierce height, cut height and other configured parameters are suitable for the selected plasma system.
Qualified Technical Service
Electrical and control-system faults should be inspected by qualified technical personnel.
Why Choose VATS Systematic Automation?
VATS Systematic Automation LLP provides CNC cutting, welding and industrial automation solutions for modern manufacturing and metal fabrication requirements. Our product portfolio includes CNC plasma cutting machines, plasma controllers, Plasma Torch Height Controllers, plasma power sources, plasma torches, plasma consumables, CNC controllers, fiber laser cutting machines, welding machines and industrial automation components.
We focus on understanding the customer's plasma source, CNC controller, torch, Z-axis configuration, material, thickness and cutting requirements before recommending a suitable torch height control solution.
Plasma Torch Height Controller Supplier
VATS Systematic Automation LLP supplies Plasma Torch Height Controllers, CNC plasma controllers, plasma power sources, plasma torches, consumables and related CNC plasma machine components for industrial cutting applications.
If you are looking for a Plasma Torch Height Controller (THC), share your CNC plasma machine, plasma source, torch model, Z-axis configuration and existing THC details with our team. This helps in identifying a suitable compatible height control solution.
Looking for a Plasma Torch Height Controller?
Share your CNC plasma machine and THC requirements with VATS Systematic Automation and get guidance on a suitable torch height control solution.
